Product Details:
|
|
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | TISCO HW |
| Certification: | ISO9001 |
| Model Number: | Monel 400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 TON |
| Price: | 1800~2000USD/TON |
| Packaging Details: | Industry standard packaging or according to client's requirement |
| Delivery Time: | 7~20 Days |
| Payment Terms: | T/T,L/C , paypal, kunlun bank, etc |
| Supply Ability: | 2000 TON/Month |
|
Detail Information |
|||
| Application: | Construction | Technique: | Cold Rolled,hardfacing/Surface Welding/cladding |
|---|---|---|---|
| Surface Treatment: | Galvanized | Standard: | GB,AISI |
| Length: | 1000-12000mm,as Per Requested | Type: | Wear Resisitant Plate |
| Width: | 600mm-1250mm | Special Use: | High-strength Steel Plate |
| Thickness: | 0.12MM-1.2MM | Product Name: | Alloy 400 Sheet |
| High Light: | Inconel X750 Alloy Steel Plate,6mm Inconel X750 Sheet,Nickel Alloy Inconel 625 Sheet |
||
Product Description
Galvanized 6mm Nickel Alloy Steel Plate Inconel X750 625 Sheet
Inconel X750 Sheet 6mm Inconel 625 Nickel Alloy Steel Sheet Price
Product Parameters
Monel 400 International Brand:
| Country | USA | GE | UK | FR |
| Standard | UNS | SEW VDIUV | BS | AFNOR |
| Monel 400 | N04400 | W.Nr.2.4360 NiCu30Fe | NA 12 | Nu 30 |
Chemical Composition:
| Grade | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
| Monel 400 | Min 63 | 28-34 | Max 2.5 | Max 2.0 | Max 0.3 | Max 0.5 | Max 0.024 |
Physical Properties:
| Grade | Density | Melting Point |
| Monel 400 | 8.83 g/cm3 | 1300°C-1390°C |
Mechanical Properties:
|
Alloy Monel400 |
Tensile Strength (Rm N/mm2) |
Yield strength (RP0.2N/mm2) | Elongation (A5 %) | HB |
| 480 | 170 | 35 | ≥331 |
Product Description:
Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems.
Main Products:
Sheet,Plate,Bar,Wire
Applications:
Marine engineering
Chemical and hydrocarbon processing equipment
Gasoline and freshwater tanks
Crude petroleum stills
De-aerating heaters
Boiler feed water heaters and other heat exchangers
Valves, pumps, shafts, fittings, and fasteners
Industrial heat exchangers
Chlorinated solvents
Crude oil distillation towers

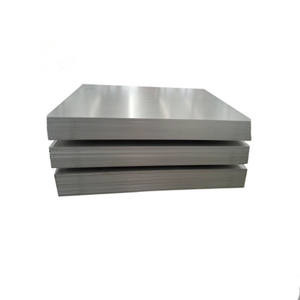

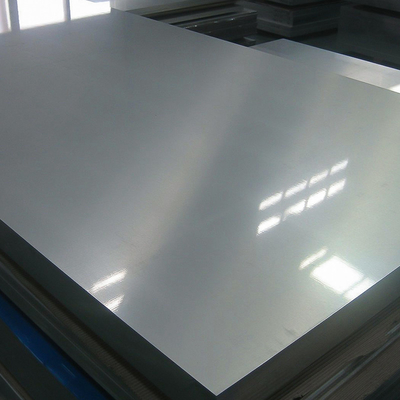

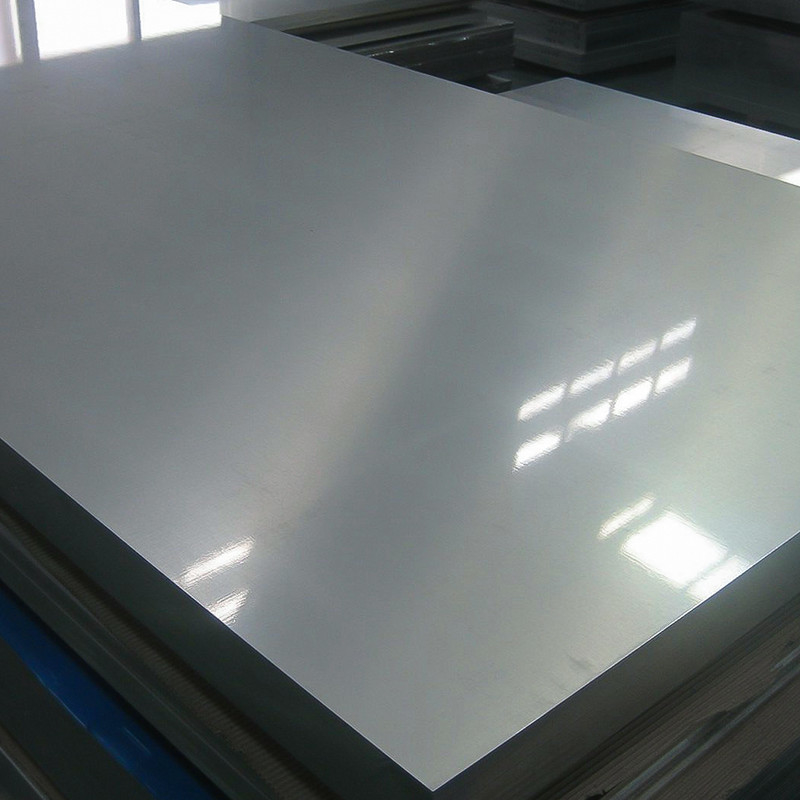

Product Display
Other Products

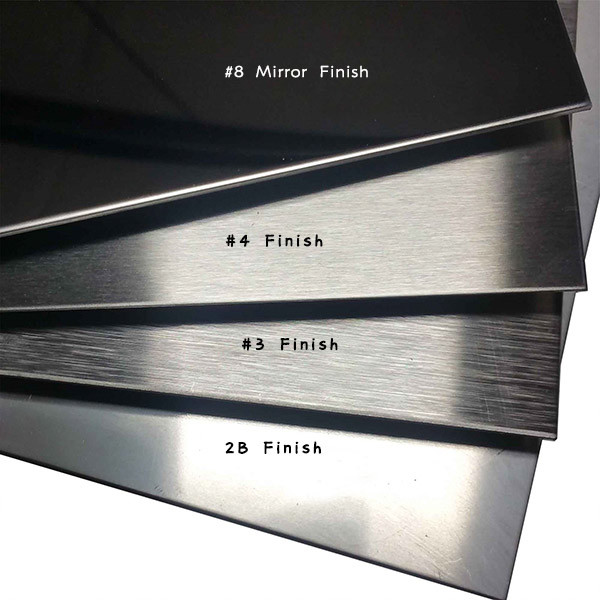

Surface Processing
Product packaging
Manufacturing Shop
stable supplying ability and good faith management
Our Company
FAQ
1. Q: Are you a trading company or factory?
A: We are specialized in stainless steel sheets (products) factory with kinds of surface finished processes.
2. Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A:Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel
3. Q: What is the MOQ?
A: 20 pcs for stainless steel sheet/plate, 2 tons for stainless steel coil.
4. Q: What about the delivery time for the order?
A: It takes around 4-6 days for the regular models, and 7 to 15working days for the special sizes and processing. It is based on the order quantity and requirement.
5. Q: Do you supply the samples for free?
A: Yes, we would send you small samples for free; the size is 80x110mm.And the sample book is 250x350mm. Most of models have stock, and also can be customized and need around 4 to 6 days.
6. Q: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
7. Q: What about the quality control?
A: Every piece is selected carefully, strictly produced, and produced follow the ISO9000 system.
8. Q: How do you protect the stainless steel sheet surface?
A: We have a high request for our quality, and each plate must have the second layer PVC laser film, one layer is 7C thick, double
lays are 14c thick.
9. Q: Do you have any assurance for your stainless steel coils?
A: It will have the mill test for quality and material report for each shipment.
